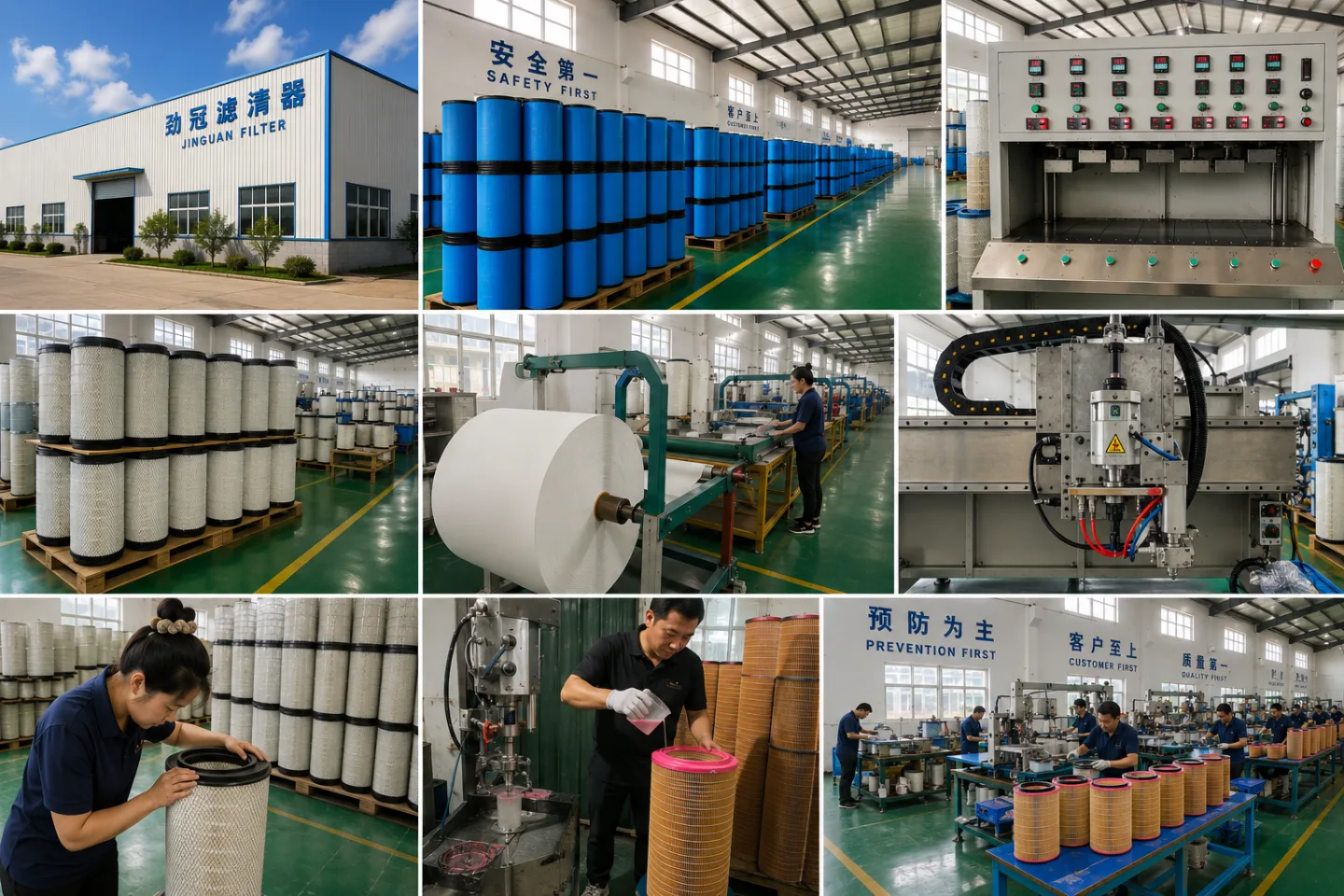

Inside Jinguan Production

Equipment and workshop processes for air, oil and fuel filter production.

Discuss Your Requirements

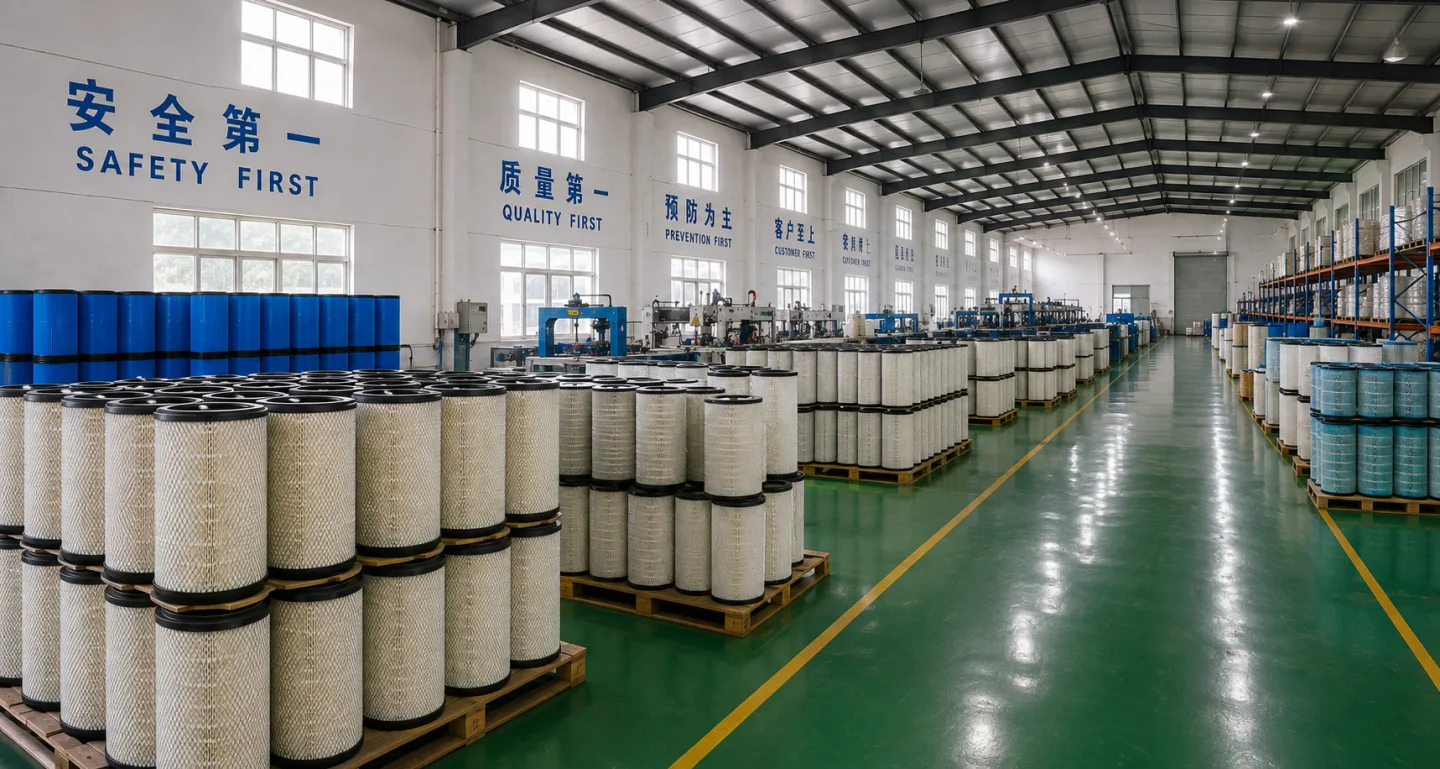

Heavy-duty filtration application visual
Heavy-duty application visual — not a photograph of the Jinguan workshop.

Real Production Evidence

These photographs show actual Jinguan workshop activities for filter-element handling, production and bonding preparation. Equipment and process steps vary by filter structure and order requirements.

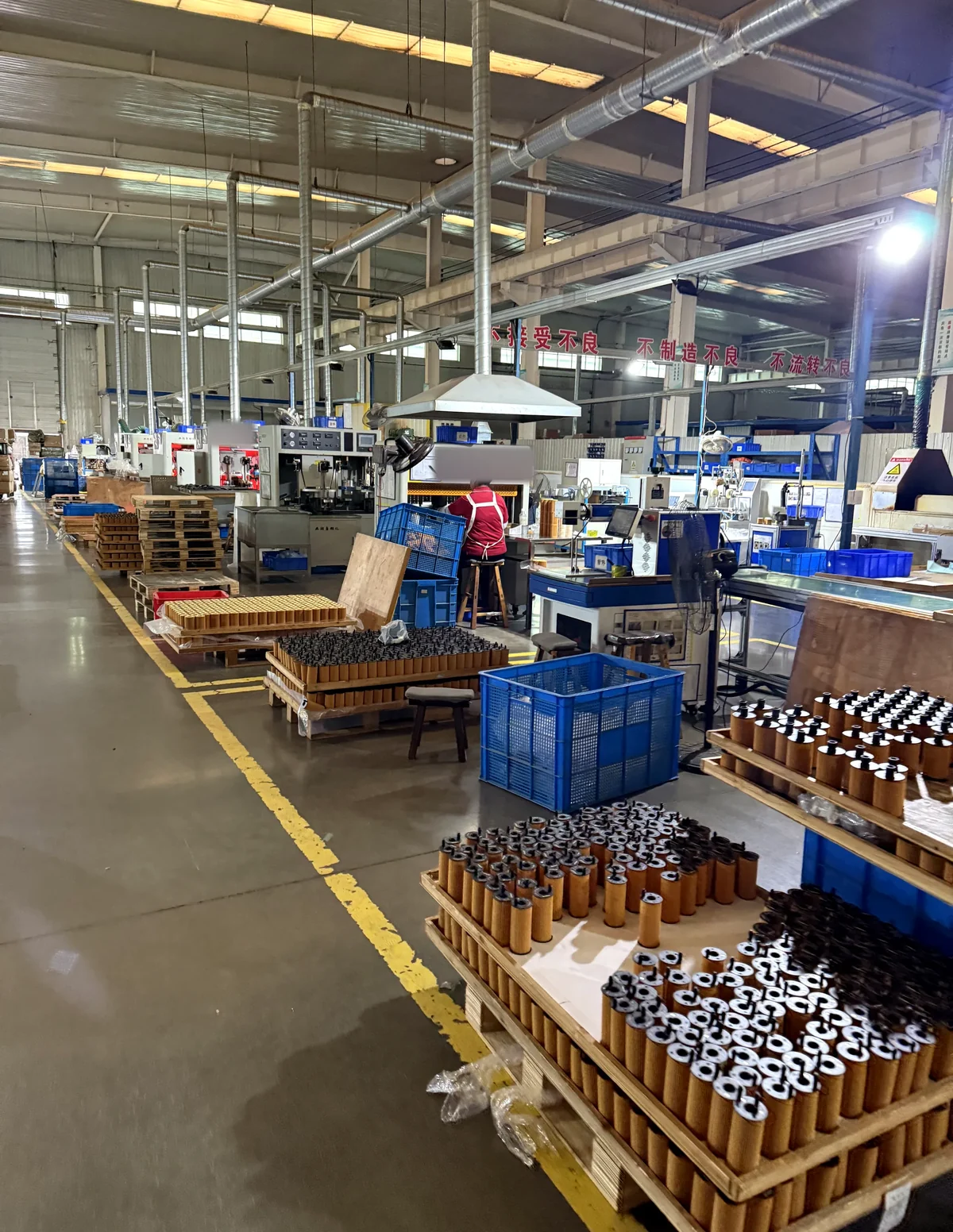

Filter Element Production Workshop at Jinguan
Filter Element Production WorkshopCylindrical filter elements and workstations in Jinguan’s production area.

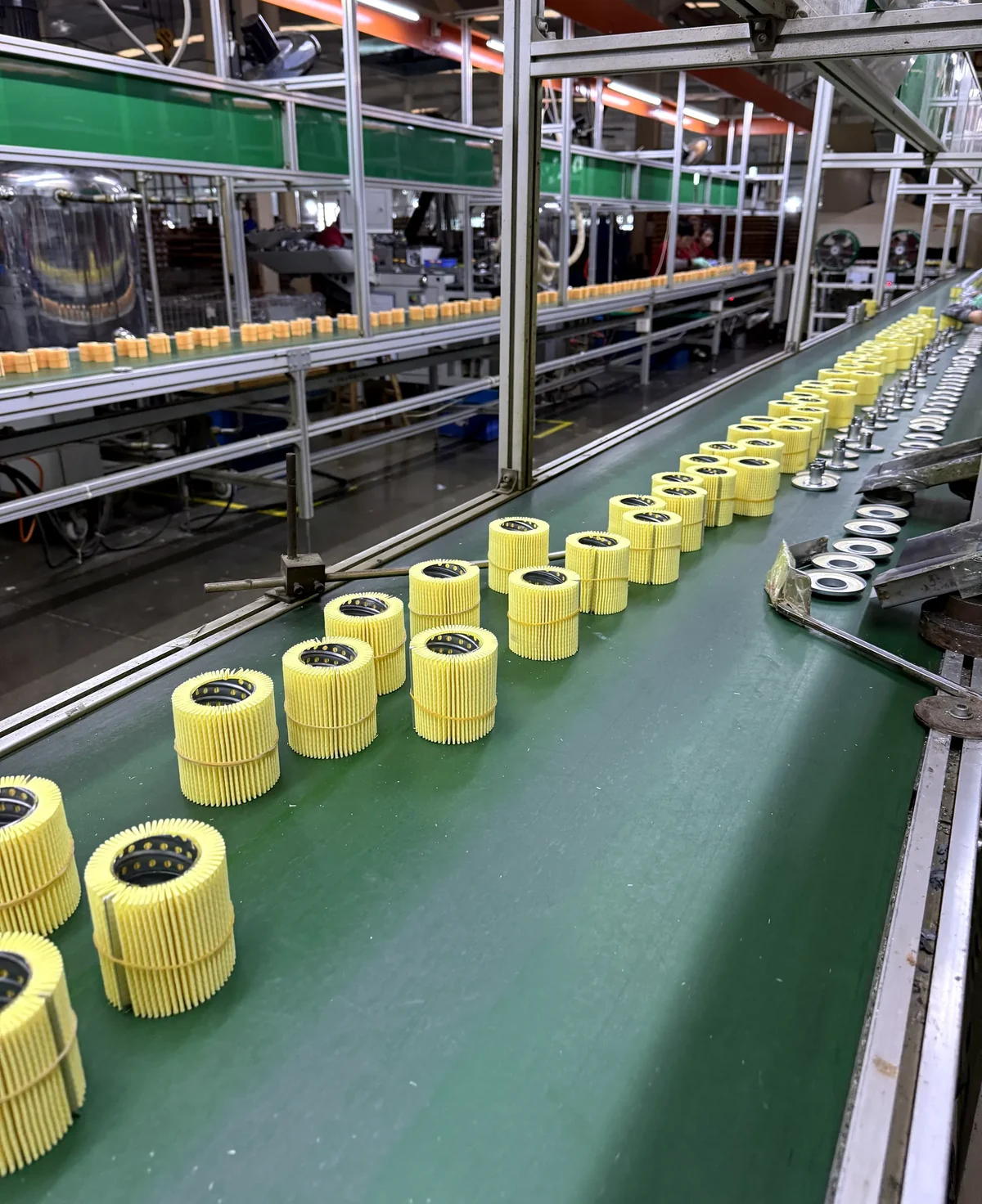

Element Handling and Line Transfer at Jinguan
Element Handling and Line TransferPleated filter elements arranged for transfer between production stages.

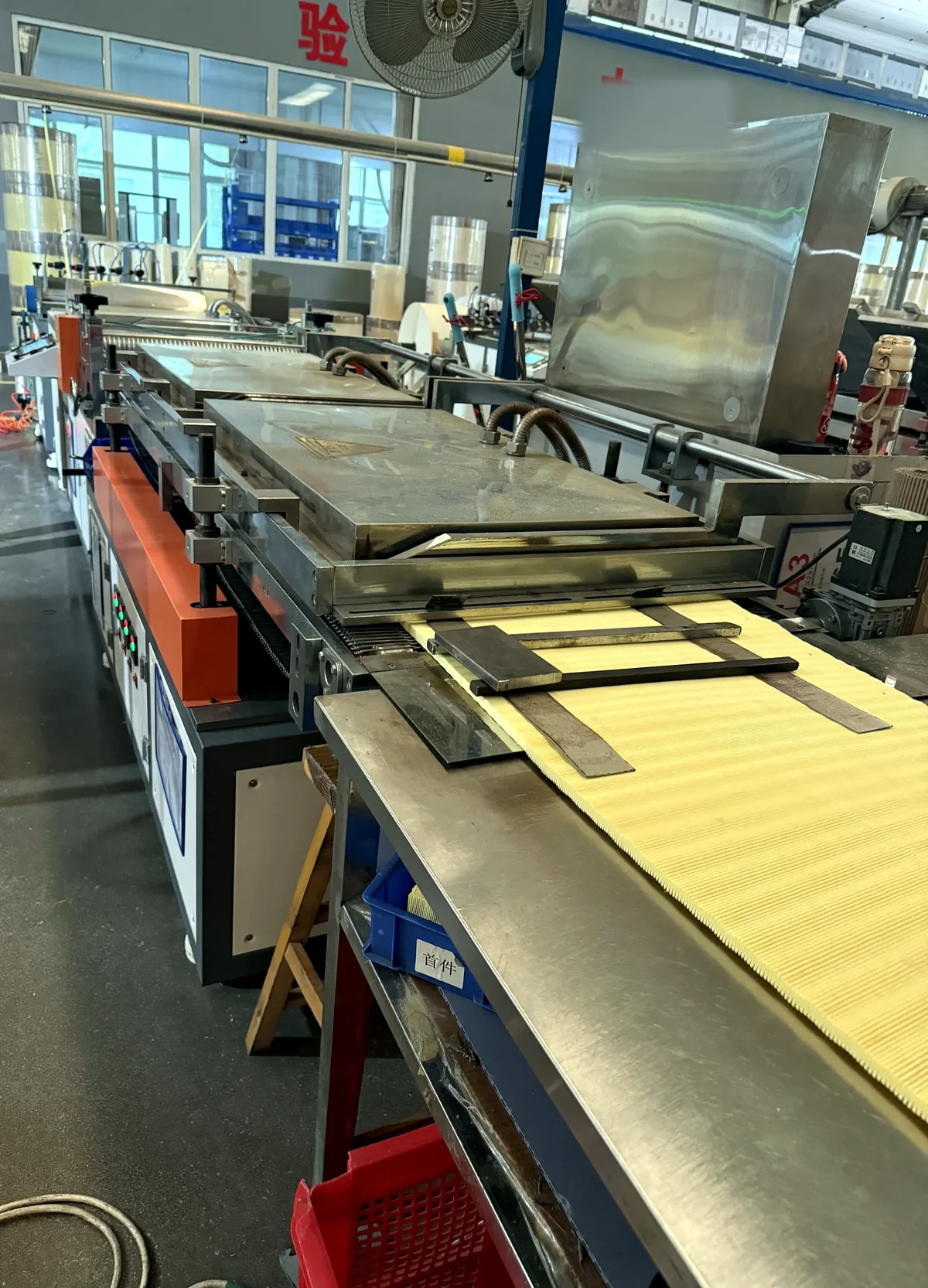

Heat-Plate Bonding Preparation at Jinguan
Heat-Plate Bonding PreparationPleated media prepared at the bonding station for selected eco oil filter elements.

Equipment and Process Record

Jinguan’s workshop equipment includes two media pleating machines, three metal-mesh forming machines, PU and metal end-cap sealing lines, small-diameter element equipment, spot-welding and inkjet-marking equipment, two plasma end-cap bonding machines, heat-plate bonding equipment for selected eco oil-filter elements, and packing equipment.

MEDIA PREPARATION

  • 2 media pleating machines
  • 3 metal mesh forming machines
  • Small-diameter element equipment

SEALING AND END-CAP ASSEMBLY

  • PU sealing line
  • Metal end-cap sealing line
  • 2 plasma end-cap bonding machines
  • Heat-plate bonding equipment for selected eco oil-filter elements
  • Spot-welding equipment

MARKING AND PACKING

  • Inkjet-marking equipment
  • Packing equipment

Work by Product Line

AIR FILTER PRODUCTION

Media pleating, metal-mesh forming, PU or metal end-cap sealing, element assembly, marking and packing are carried out according to the confirmed filter construction.

OIL FILTER ELEMENT PRODUCTION

For applicable cartridge constructions, the workshop supports media forming, small-diameter element preparation, plasma or heat-plate end-cap bonding, assembly, marking and packing.

FUEL FILTER ELEMENT PRODUCTION

For applicable fuel-filter constructions, work includes media preparation, element assembly, sealing, marking, inspection and packing.

Equipment and process selection depend on the filter construction and confirmed order requirements. Part number, dimensions, materials and application must be confirmed before quotation.

Process

Material preparation → Forming → Sealing or bonding → Assembly → Marking → Inspection → Packing

ISO 9001:2015 certificate UQ250353R1

ISO 9001:2015 Quality Management System

Certified scope covers the processing of air filters, oil filters and diesel filters.

Certificate No.:
UQ250353R1
Certified scope:
Processing of automotive parts (air filters, oil filters, diesel filters)
Valid:
08 Jun. 2025 – 07 Jun. 2028
