FG9604190020-02 Air Filter for Sinotruk Homan H3 Trucks
- Part Number
- FG9604190020-02
- Product Type
- Air Filter
- OE
- Available on request
- Cross
- K Series K2040
FG9604190020-02 is verified for Sinotruk Homan H3 Trucks.
Product Identification
B2B Purchasing Information
Commercial terms are confirmed for the exact model and order quantity. No public price is implied.
- MOQ / minimum order
- Confirm after sending the model and quantity.
- Sample availability
- Confirm after sending the model and quantity.
- Stock / production lead time
- Confirm after sending the model and quantity.
- Packaging
- Confirm after sending the model and quantity.
- Customization
- Confirm after sending the model and quantity.
See our company capabilities and verified export markets. A company-level export record does not mean this model was shipped to that country.
OE Numbers
Available on request.
Cross References
- Brand
- K Series
- Part Number
- K2040
- Reference Type
- Cross Reference
| Brand | Part Number | Reference Type |
|---|---|---|
| K Series | K2040 | Cross Reference |
Confirm number, size and application before ordering.
Dimensions
ELEMENT FILTER
FG9604190020-02
FG9604190020-02 Air Filter Element
- Outer Diameter (OD) (Top)
- 200 mm
- Outer Diameter (OD) (Bottom)
- 197 mm
- Inner Diameter (ID)
- 121 mm
- Height (H) (Flat-to-Flat)
- 400 mm
- Height (H) (Overall)
- 412 mm
Application / Fitment
Industrial Application
Heavy Duty Truck
- Model / Series
-
- Sinotruk Homan H3 Trucks
- Fitment Note
- Confirm the OE/cross reference and exact vehicle or engine configuration before ordering.
Engine / Variant
Contact us for application details.

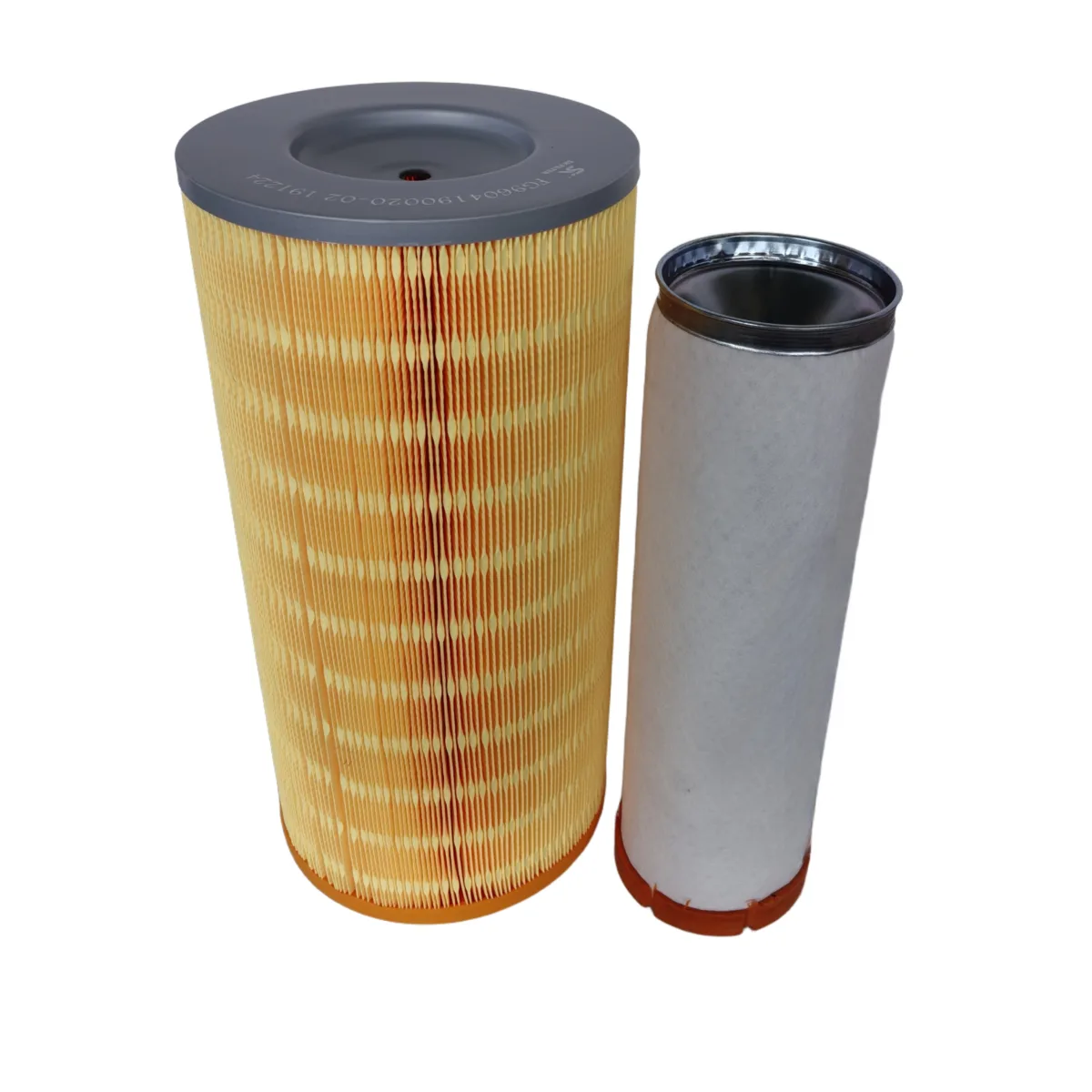

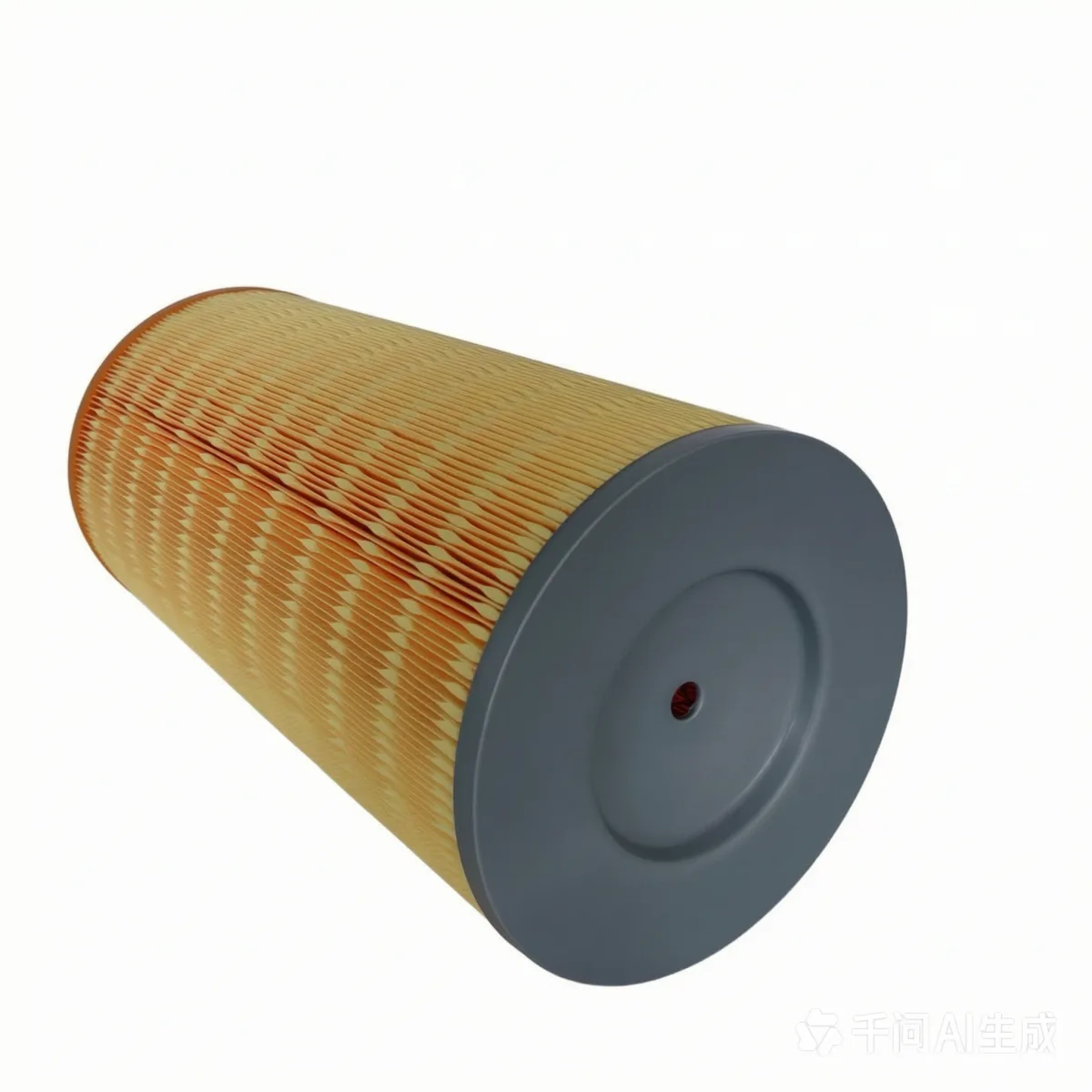

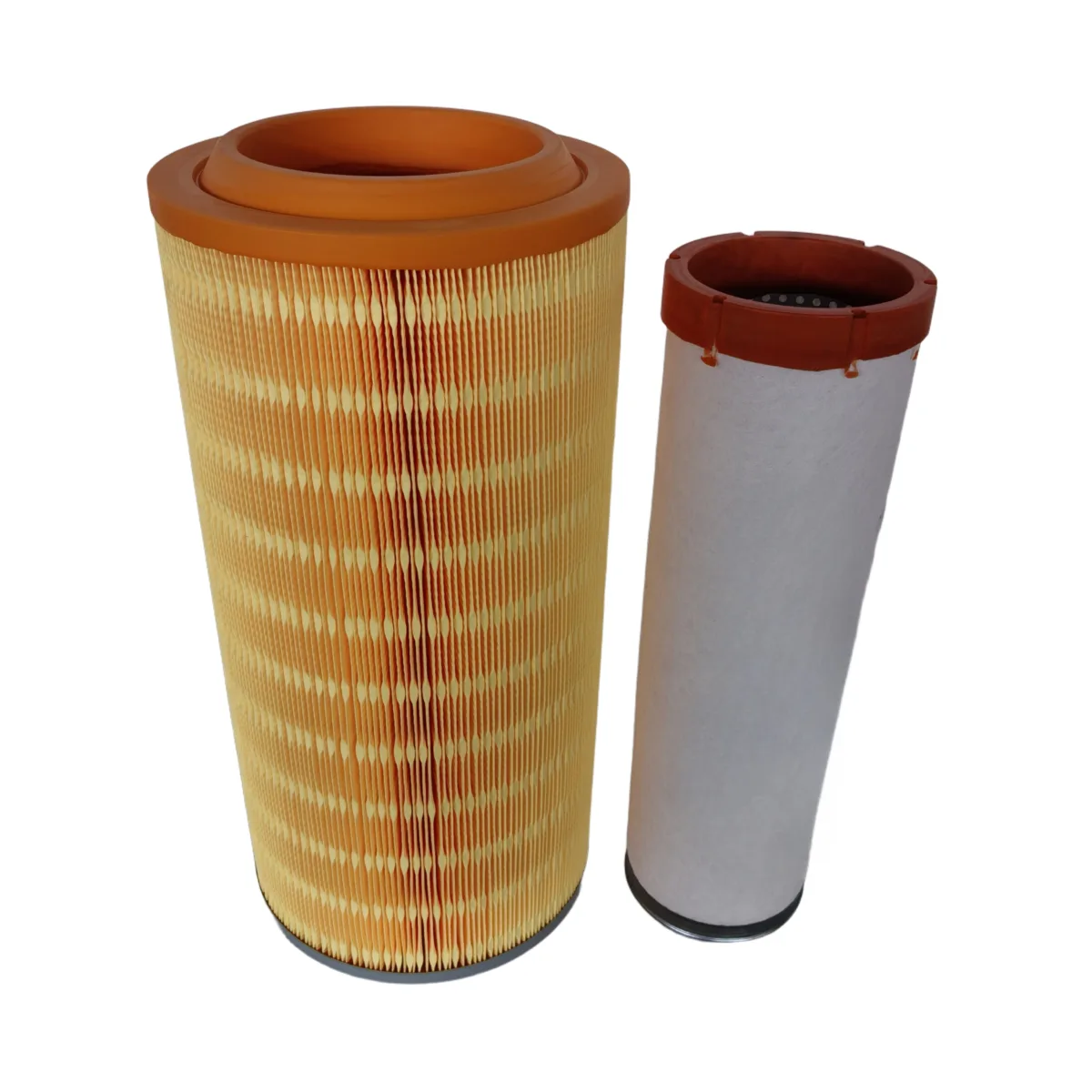

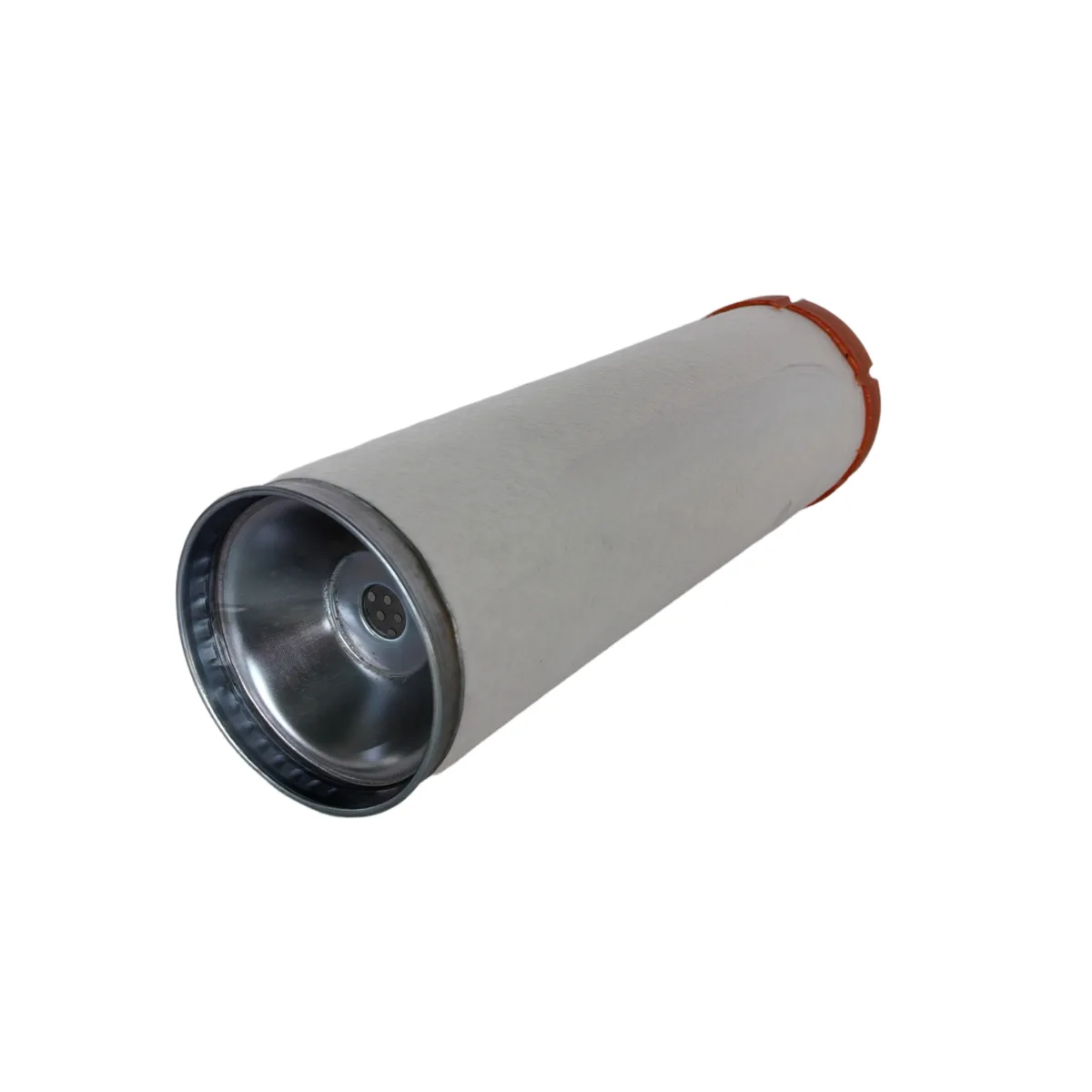

Product Images
Matching Filters for This Application
Contact us with your OE number or vehicle information for matching filter options.
