HU12009Z Eco Oil Filter Element for DAF CF / XF MX13
- Part Number
- HU12009Z
- Product Type
- Eco Oil Filter Element
- OE
- 2151728
- Cross
- MANN-FILTER HU 12 009 z
HU12009Z is an eco oil filter element for the listed DAF CF / XF MX13 applications. It replaces OE 2151728 and 2047411. Model, engine and installation details are listed in the application table.
Product Identification
- OE Numbers
- DAF 2151728, DAF 2047411, DAF 2234788
B2B Purchasing Information
Commercial terms are confirmed for the exact model and order quantity. No public price is implied.
- MOQ / minimum order
- Confirm after sending the model and quantity.
- Sample availability
- Confirm after sending the model and quantity.
- Stock / production lead time
- Confirm after sending the model and quantity.
- Packaging
- Confirm after sending the model and quantity.
- Customization
- Confirm after sending the model and quantity.
See our company capabilities and verified export markets. A company-level export record does not mean this model was shipped to that country.
OE Numbers
Cross References
- Brand
- MANN-FILTER
- Part Number
- HU 12 009 z
- Reference Type
- Cross Reference
- Brand
- WIX
- Part Number
- WL10341
- Reference Type
- Cross Reference
- Brand
- Hengst
- Part Number
- E903H D436
- Reference Type
- Cross Reference
- Brand
- Fleetguard
- Part Number
- LF16368
- Reference Type
- Cross Reference
- Brand
- Donaldson
- Part Number
- P957929
- Reference Type
- Cross Reference
- Brand
- HIFI Filter
- Part Number
- SO 11152
- Reference Type
- Cross Reference
| Brand | Part Number | Reference Type |
|---|---|---|
| MANN-FILTER | HU 12 009 z | Cross Reference |
| WIX | WL10341 | Cross Reference |
| Hengst | E903H D436 | Cross Reference |
| Fleetguard | LF16368 | Cross Reference |
| Donaldson | P957929 | Cross Reference |
| HIFI Filter | SO 11152 | Cross Reference |
Confirm number, size and application before ordering.
Dimensions
- Outer Diameter
- 120 mm
- Inner Diameter
- 53 mm
- Height
- 234 mm
Application / Fitment
DAF
Heavy Duty Truck
- Model / Series
-
- New CF (CF86) / XF (XF106) / XF II/XFC / XG/XG+ (MX13 Engines)
- Fitment Note
- DAF New CF (CF86), XF (XF106), XF II/XFC, XG/XG+ with MX13 engines, 430/480/530hp variants.
DAF Trucks
Equipment
- Model / Series
-
- New CF (CF86) — 430 (CF86)
- Engine
- MX13 (Euro 6)
- Year / Generation
- 2017-02 →
- Fitment Note
- Engine displacement (cm³): 12900; Power (kW): 315; Power (HP): 428
- Model / Series
-
- New CF (CF86) — 480 (CF86)
- Engine
- MX13 (Euro 6)
- Year / Generation
- 2017-02 →
- Fitment Note
- Engine displacement (cm³): 12900; Power (kW): 355; Power (HP): 483
- Model / Series
-
- New CF (CF86) — 530 (CF86)
- Engine
- MX13 (Euro 6)
- Year / Generation
- 2017-02 →
- Fitment Note
- Engine displacement (cm³): 12900; Power (kW): 390; Power (HP): 530
- Model / Series
-
- XF (XF106) — 430 (XF106)
- Engine
- MX13 (Euro 6)
- Year / Generation
- 2017-02 →
- Fitment Note
- Engine displacement (cm³): 12900; Power (kW): 315; Power (HP): 428
- Model / Series
-
- XF (XF106) — 480 (XF106)
- Engine
- MX13 (Euro 6)
- Year / Generation
- 2017-02 →
- Fitment Note
- Engine displacement (cm³): 12900; Power (kW): 355; Power (HP): 483
- Model / Series
-
- XF (XF106) — 530 (XF106)
- Engine
- MX13 (Euro 6)
- Year / Generation
- 2017-02 →
- Fitment Note
- Engine displacement (cm³): 12900; Power (kW): 390; Power (HP): 530
- Model / Series
-
- XF II / XFC — 430
- Engine
- MX13
- Year / Generation
- 2021-06 →
- Fitment Note
- Engine displacement (cm³): 12903; Power (kW): 315; Power (HP): 428
- Model / Series
-
- XF II / XFC — 480
- Engine
- MX13
- Year / Generation
- 2021-06 →
- Fitment Note
- Engine displacement (cm³): 12903; Power (kW): 355; Power (HP): 483
- Model / Series
-
- XF II / XFC — 530
- Engine
- MX13
- Year / Generation
- 2021-06 →
- Fitment Note
- Engine displacement (cm³): 12903; Power (kW): 390; Power (HP): 530
- Model / Series
-
- XG / XG — 430
- Engine
- MX13
- Year / Generation
- 2021-06 →
- Fitment Note
- Engine displacement (cm³): 12903; Power (kW): 315; Power (HP): 428
- Model / Series
-
- XG / XG — 480
- Engine
- MX13
- Year / Generation
- 2021-06 →
- Fitment Note
- Engine displacement (cm³): 12903; Power (kW): 355; Power (HP): 483
- Model / Series
-
- XG / XG — 530
- Engine
- MX13
- Year / Generation
- 2021-06 →
- Fitment Note
- Engine displacement (cm³): 12903; Power (kW): 390; Power (HP): 530
Engine / Variant

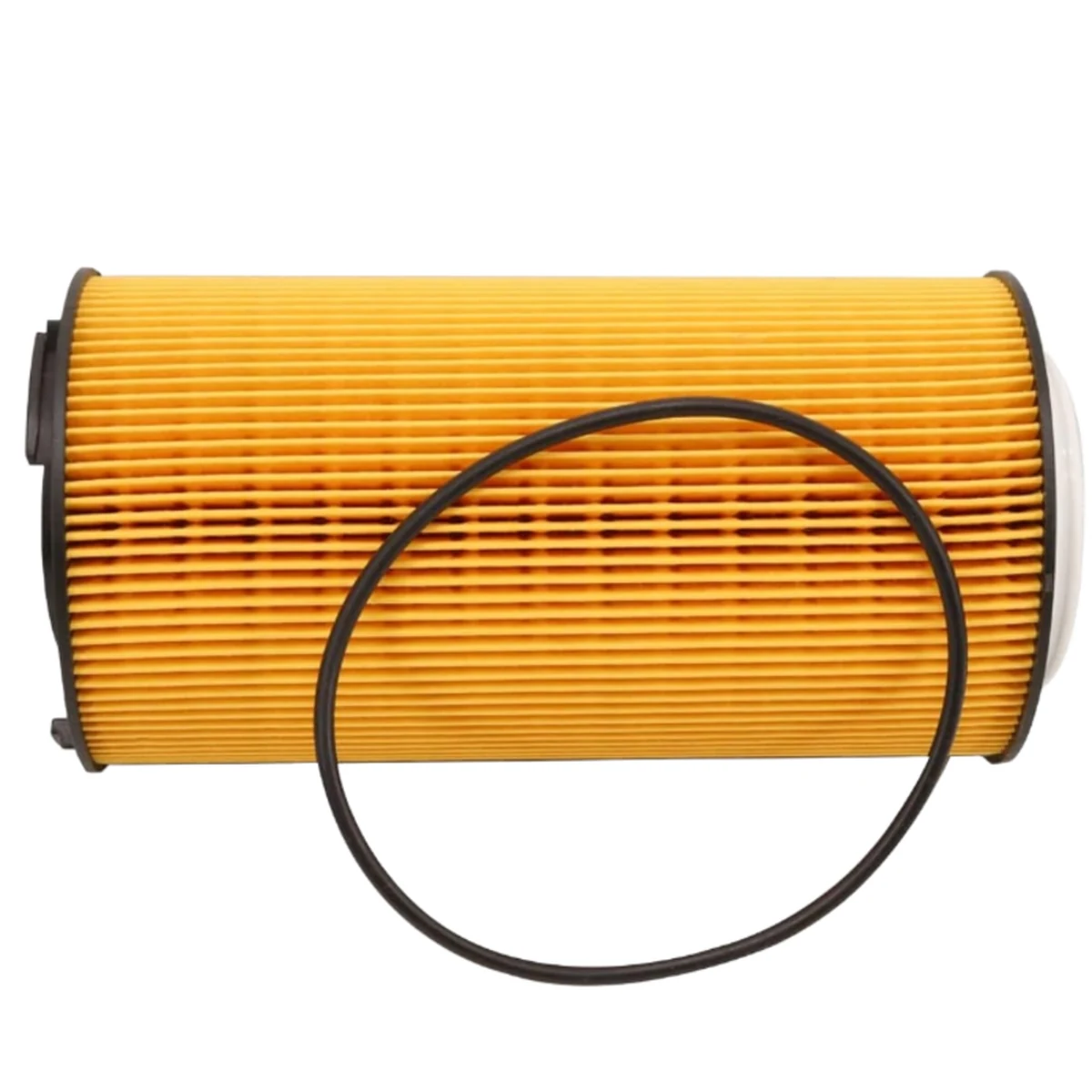

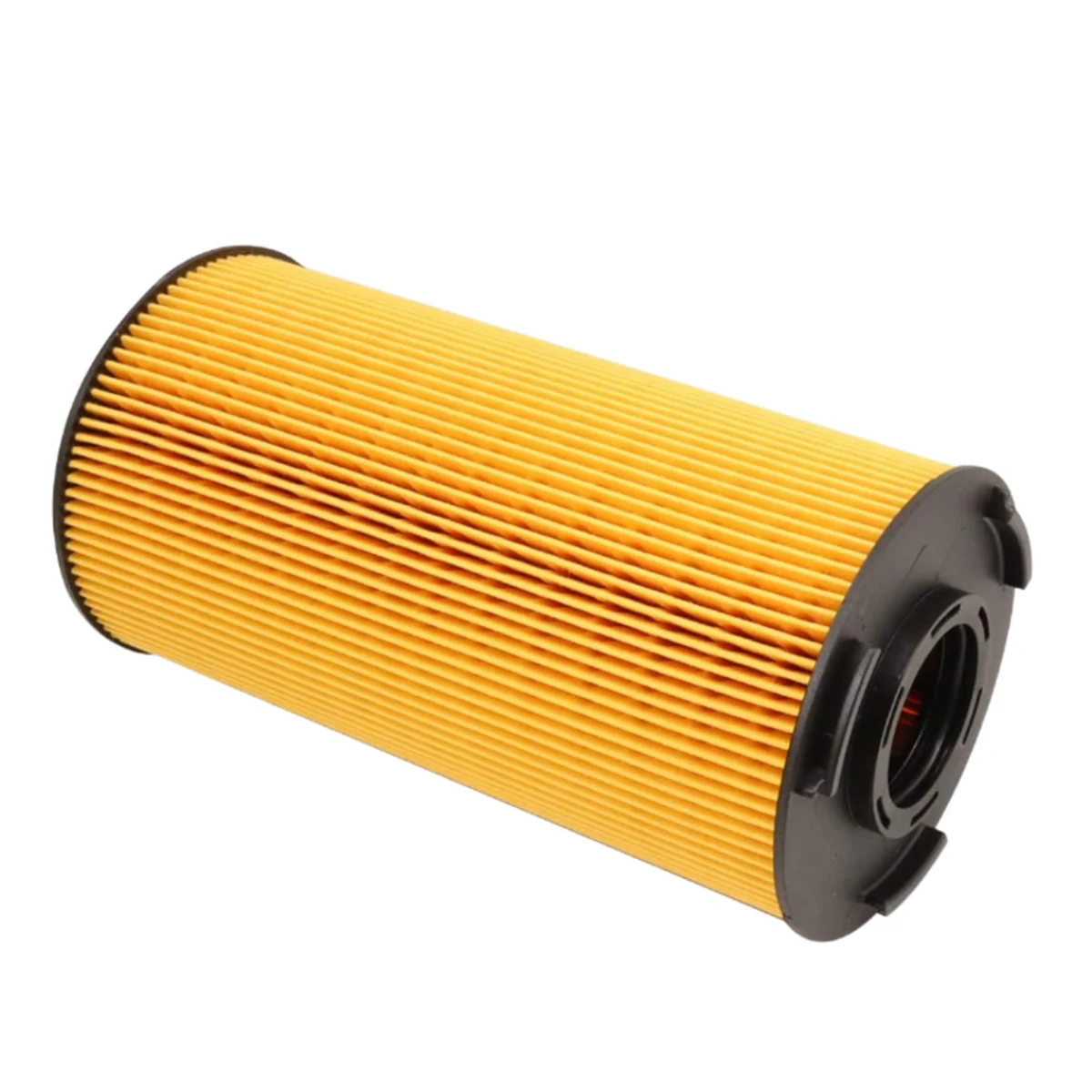

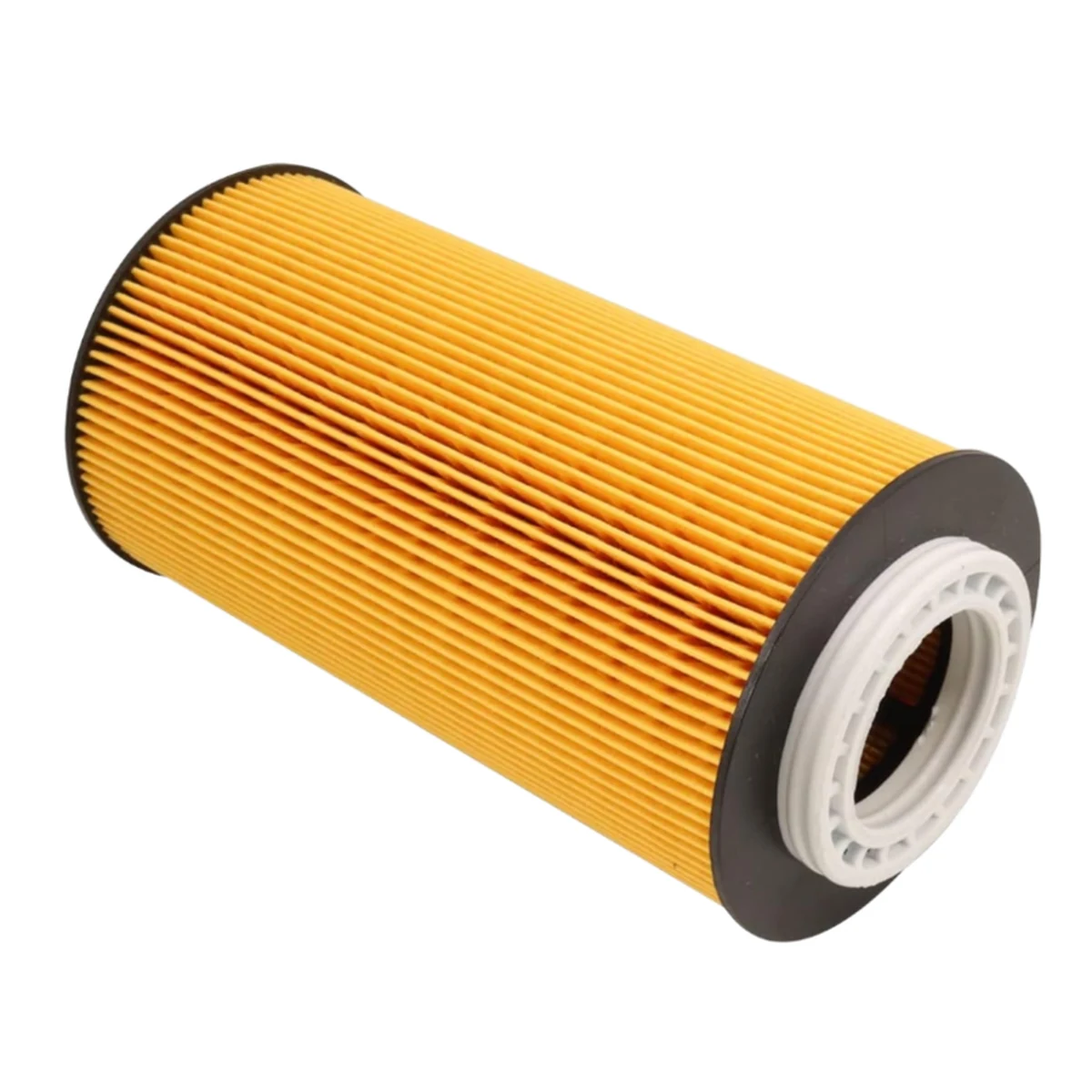

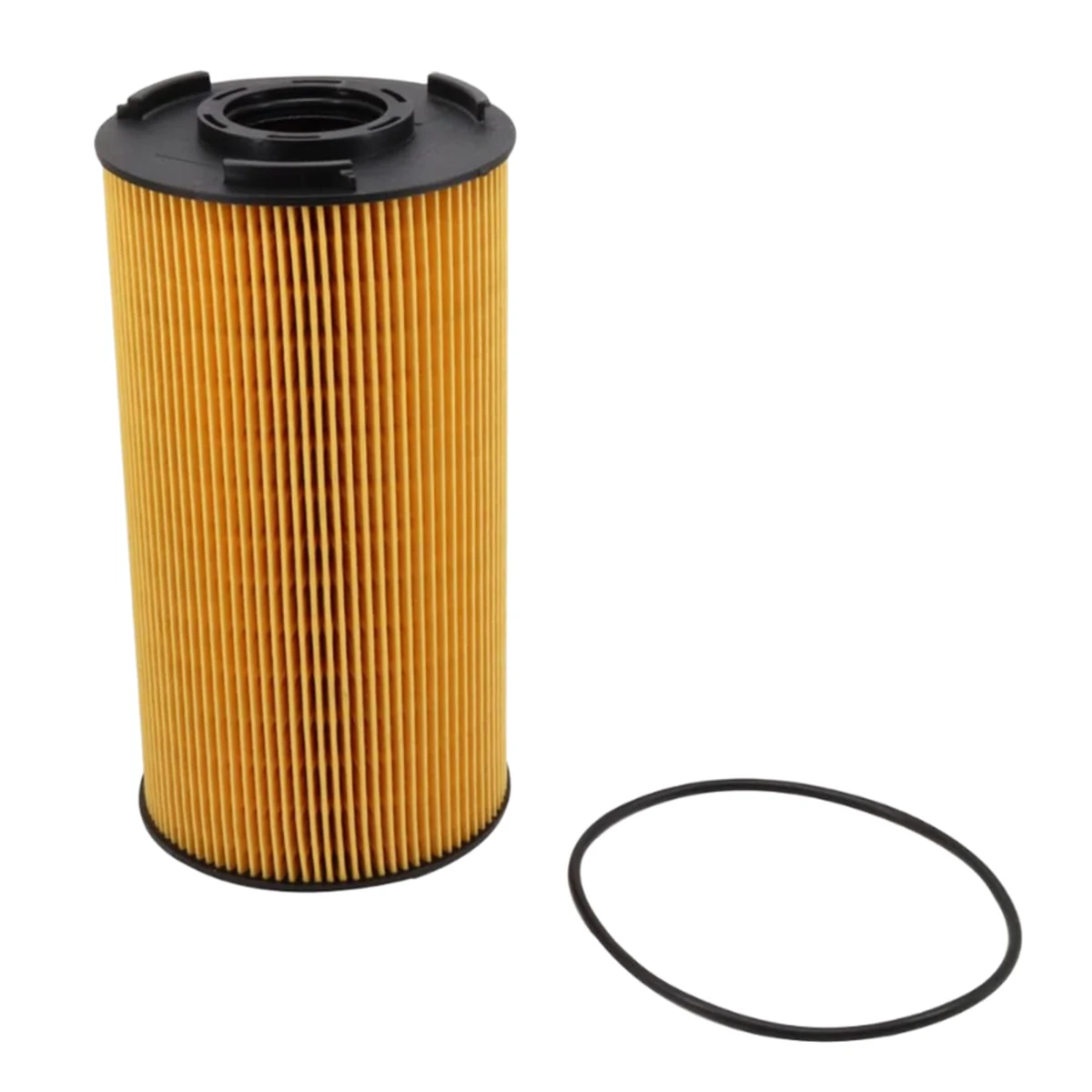

Product Images
Matching Filters for This Application
Contact us with your OE number or vehicle information for matching filter options.
