246-5009 Primary & Safety Air Filter Set for Caterpillar
- Part Number:
- 246-5009
- Product Type:
- Air Filter
- Application:
- Caterpillar 770 / 772 / 773 / 775 / 777 Off-Highway Trucks; Caterpillar 6020 / 6020B Hydraulic Shovels and M325C Excavator
Quick Answer
246-5009 and 246-5010 are the verified primary and secondary engine-air filter elements for listed Caterpillar off-highway trucks, hydraulic shovels and excavators. Confirm both Cat numbers and the exact machine serial range before quotation.
Product Identification
- Part Number
- 246-5009
- JINGUAN Number
- JG869901
- Product Type
- Air Filter
- OE Numbers
- Caterpillar 246-5009, Caterpillar 246-5010
OE Numbers
246-5009 · Caterpillar
246-5010 · Caterpillar
Cross References
- Brand
- MANN
- Part Number
- C372680/2
- Reference Type
- Cross Reference
- Brand
- MANN
- Part Number
- CF23550/2
- Reference Type
- Cross Reference
- Brand
- Fleetguard
- Part Number
- AF26207
- Reference Type
- Cross Reference
- Brand
- Fleetguard
- Part Number
- AF26208
- Reference Type
- Cross Reference
- Brand
- Donaldson
- Part Number
- P781098
- Reference Type
- Cross Reference
- Brand
- Donaldson
- Part Number
- P781102
- Reference Type
- Cross Reference
- Brand
- Sakura
- Part Number
- A-8686
- Reference Type
- Cross Reference
- Brand
- Sakura
- Part Number
- A-7626
- Reference Type
- Cross Reference
| Brand | Part Number | Reference Type |
|---|---|---|
| MANN | C372680/2 | Cross Reference |
| MANN | CF23550/2 | Cross Reference |
| Fleetguard | AF26207 | Cross Reference |
| Fleetguard | AF26208 | Cross Reference |
| Donaldson | P781098 | Cross Reference |
| Donaldson | P781102 | Cross Reference |
| Sakura | A-8686 | Cross Reference |
| Sakura | A-7626 | Cross Reference |
Confirm number, size and application before ordering.
Dimensions

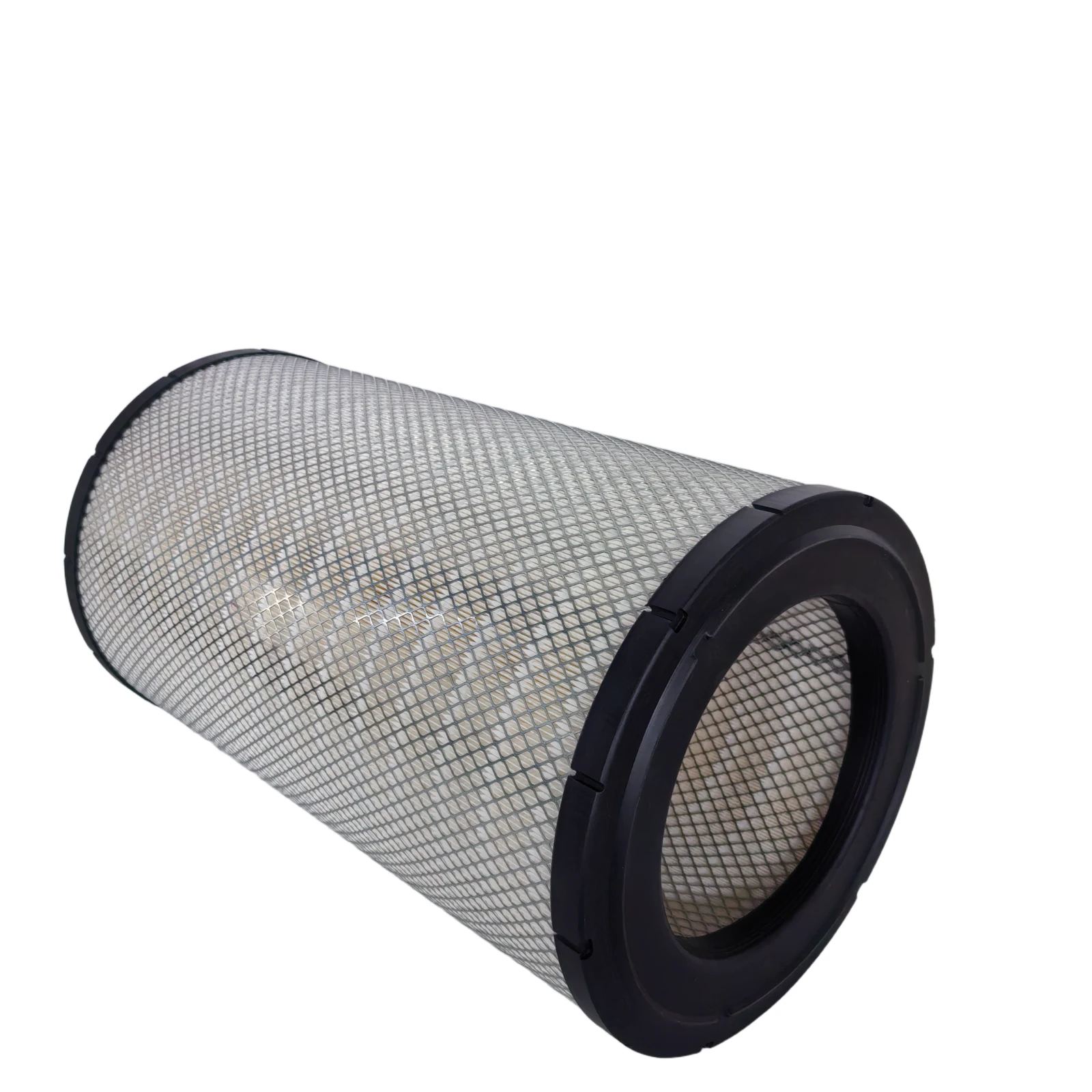

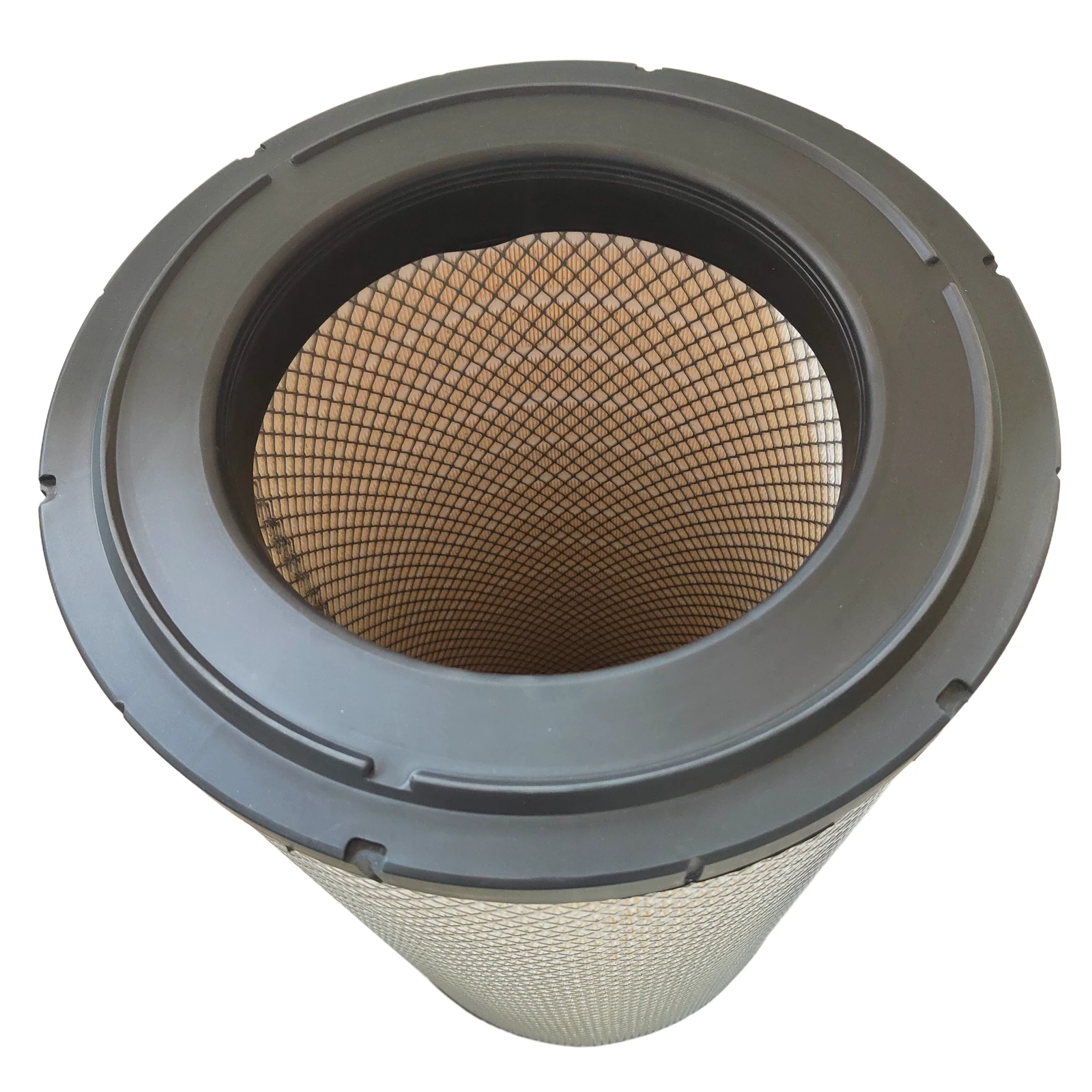

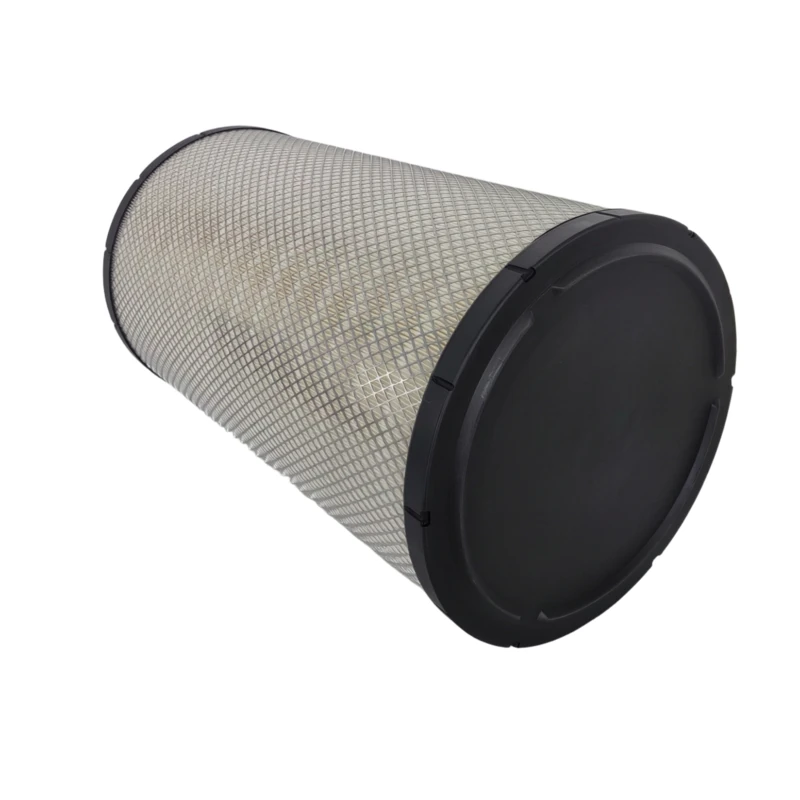

PRIMARY FILTER
246-5009
Primary Filter
- Outer Diameter (OD) (maximum)
- 362.8 mm
- Inner Diameter (ID) (primary opening)
- 227.1 mm
- Height (H) (overall)
- 633.8 mm

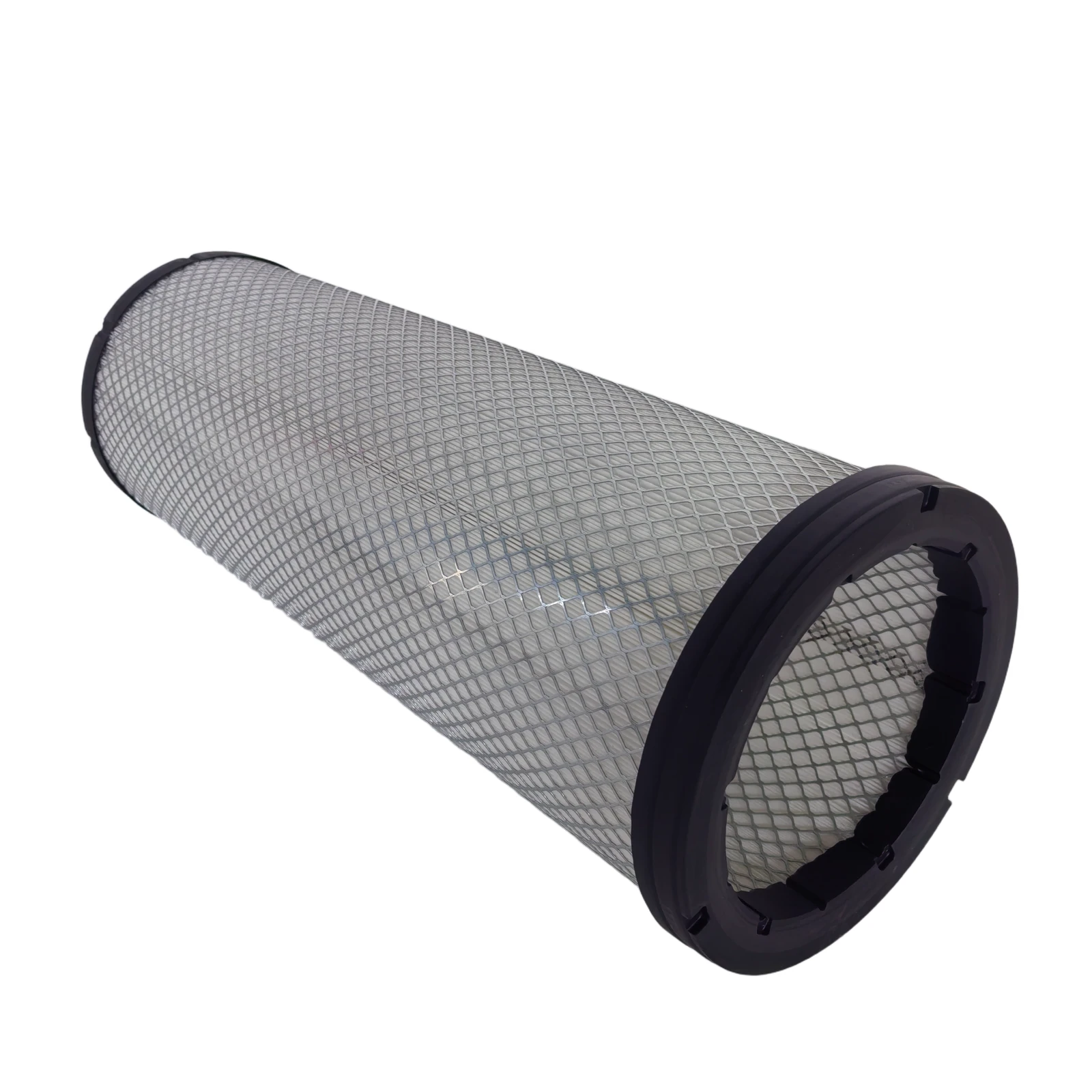

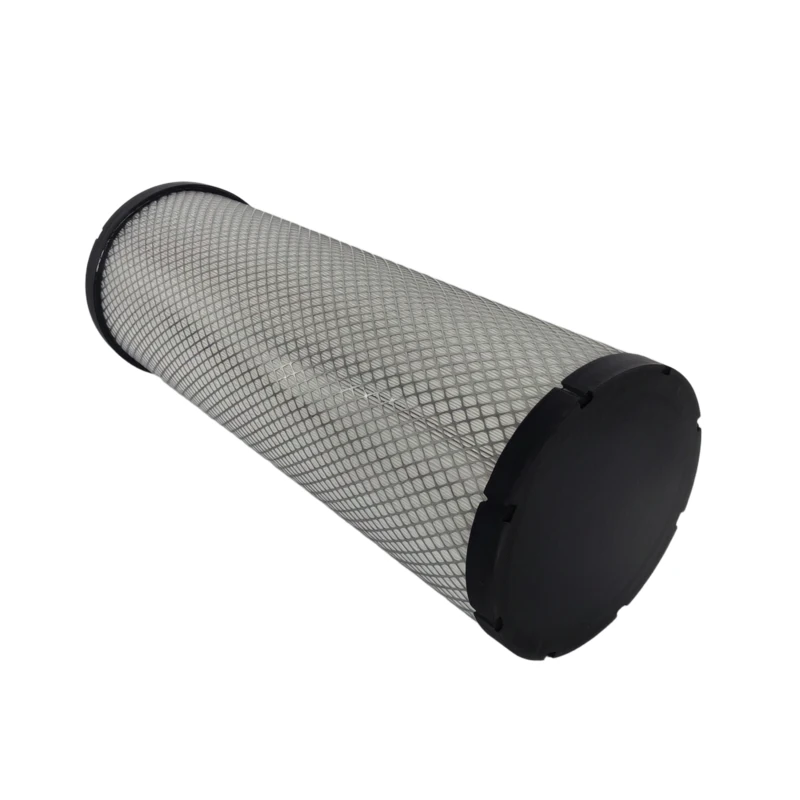

SAFETY FILTER
246-5010
Safety Filter
- Outer Diameter (OD) (maximum)
- 230 mm
- Inner Diameter (ID) (primary opening)
- 179 mm
- Height (H) (overall)
- 624 mm
Application / Fitment
Caterpillar
Construction And Mining Equipment
- Model / Series
-
- 770
- 772
- 773
- 775
- 777 Off-Highway Trucks
- Fitment Note
- Confirm Cat 246-5009 / 246-5010 and exact machine serial range before ordering.
- Model / Series
-
- 6020
- 6020B Hydraulic Shovels and M325C Excavator
- Fitment Note
- Confirm Cat 246-5009 / 246-5010 and exact machine serial range before ordering.
Engine / Variant
Contact us for application details.

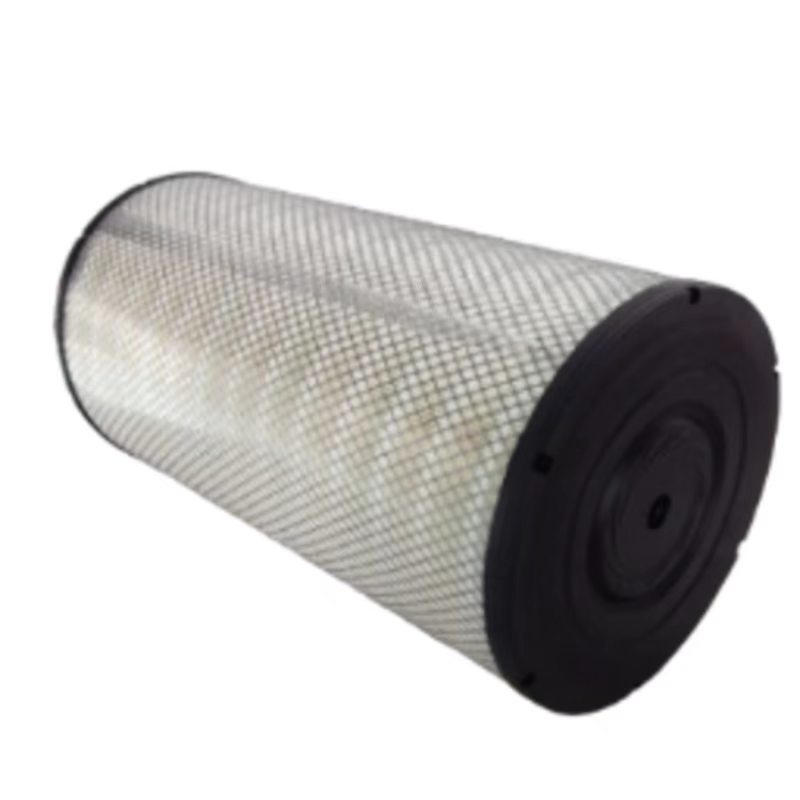

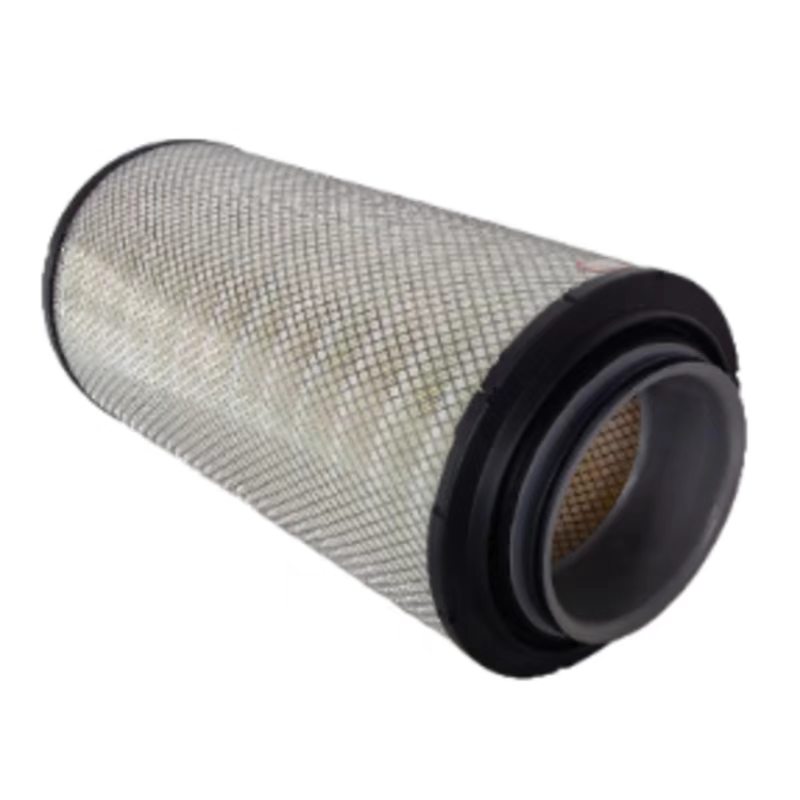

Product Images
Matching Filters for This Application
Contact us with your OE number or vehicle information for matching filter options.
Request a Quote
Send your part number, OE number or product photo.
Third-party trademarks and part numbers are used for identification and cross-reference purposes only.
